Incorporated the latest technology
Brawn has three hydraulic side upgrades: a hydraulic seat post, hydraulic suspension fork and hydraulic disc brakes. Whether it's long hills or rolling terrain, you can be assured of the most comfortable ride. Motorcycle styling and app sync are at the forefront of this technologically advanced e-bike.

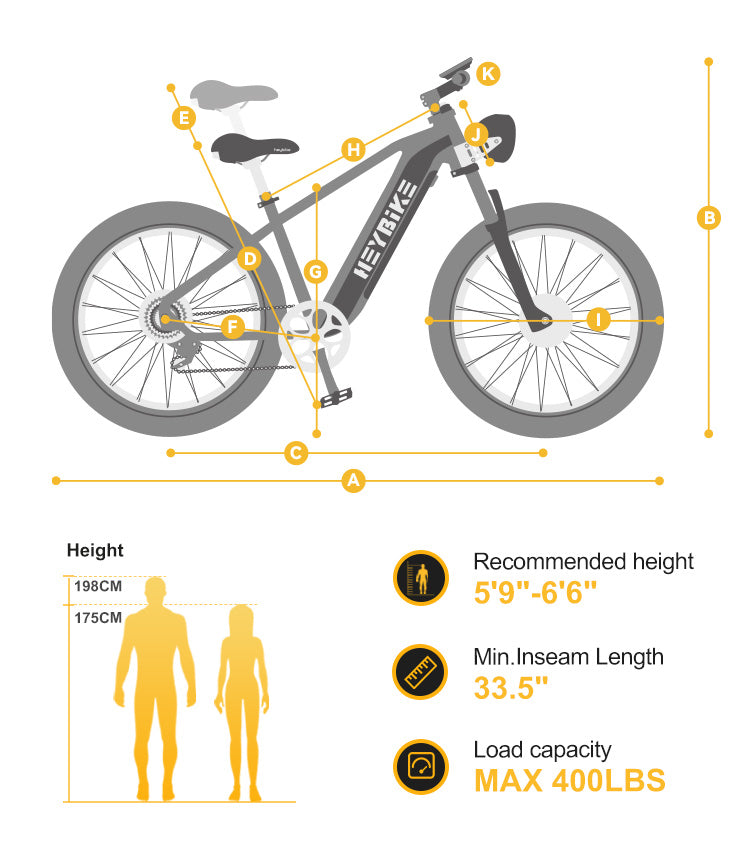

Size & Fit
Size & Fit
-
A
Total Length
74.8" -
B
Handlebar Height
46.9" -
C
Wheelbase
45.9" -
D
Minimum Seat Height
29.1" -
E
Maximum Seat Height
38.2" -
F
Chain Stay Length
19.7" -
G
Stand Height
26" -
H
Top Tube Length
22.4" -
I
Wheel Diameter
29.1" -
J
Head Tube Length
5.9" -
K
Handlebar Length
24.8" -
L
Recommended Rider Height
5'9''-6'6''
Technical Specifications
- Battery
48V/18Ah (UL2849 Recognized)
- Charger
48V 4A
- Charging Time
4-5 Hours
- Hub Motor
750W Brushless Gear Motor
- Max Range
65 Miles (Pedal Assist)
- Max Load
400 lbs.
- Ebike Class
Class 3
- IP Level
IPX 4
- Front Fork
Hydraulic Suspension Front Fork
- Seat
Hydraulic Seat
- Brakes
Hydraulic Disc Brakes System
- Tires
26"x4.0" Fat Tires
- Product Dimensions
191x62.5x114 (cm)
- Product Weight
78.3 lbs.
- Package Dimensions
153x31x78 (cm)
- Package Weight
97 lbs.
