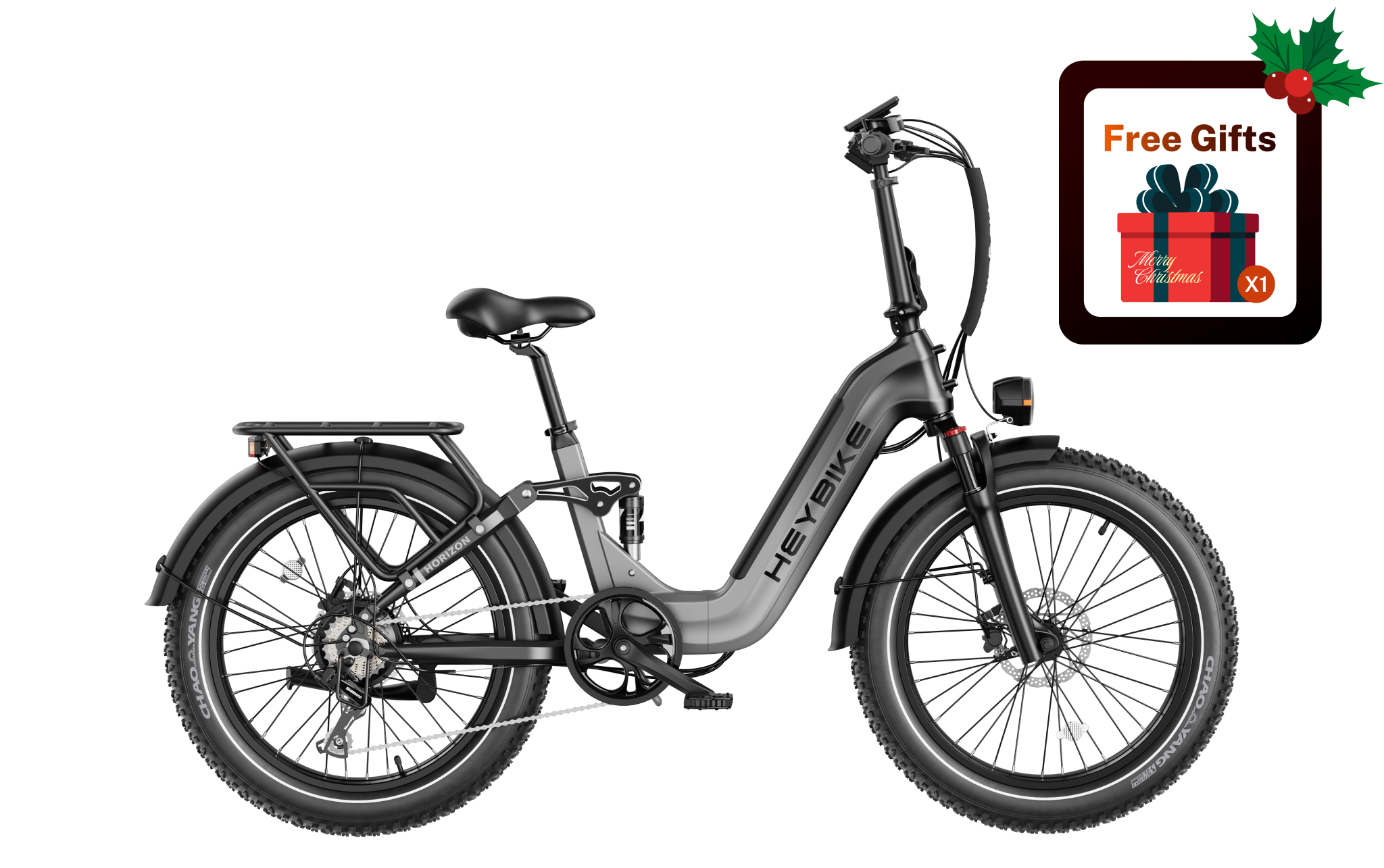

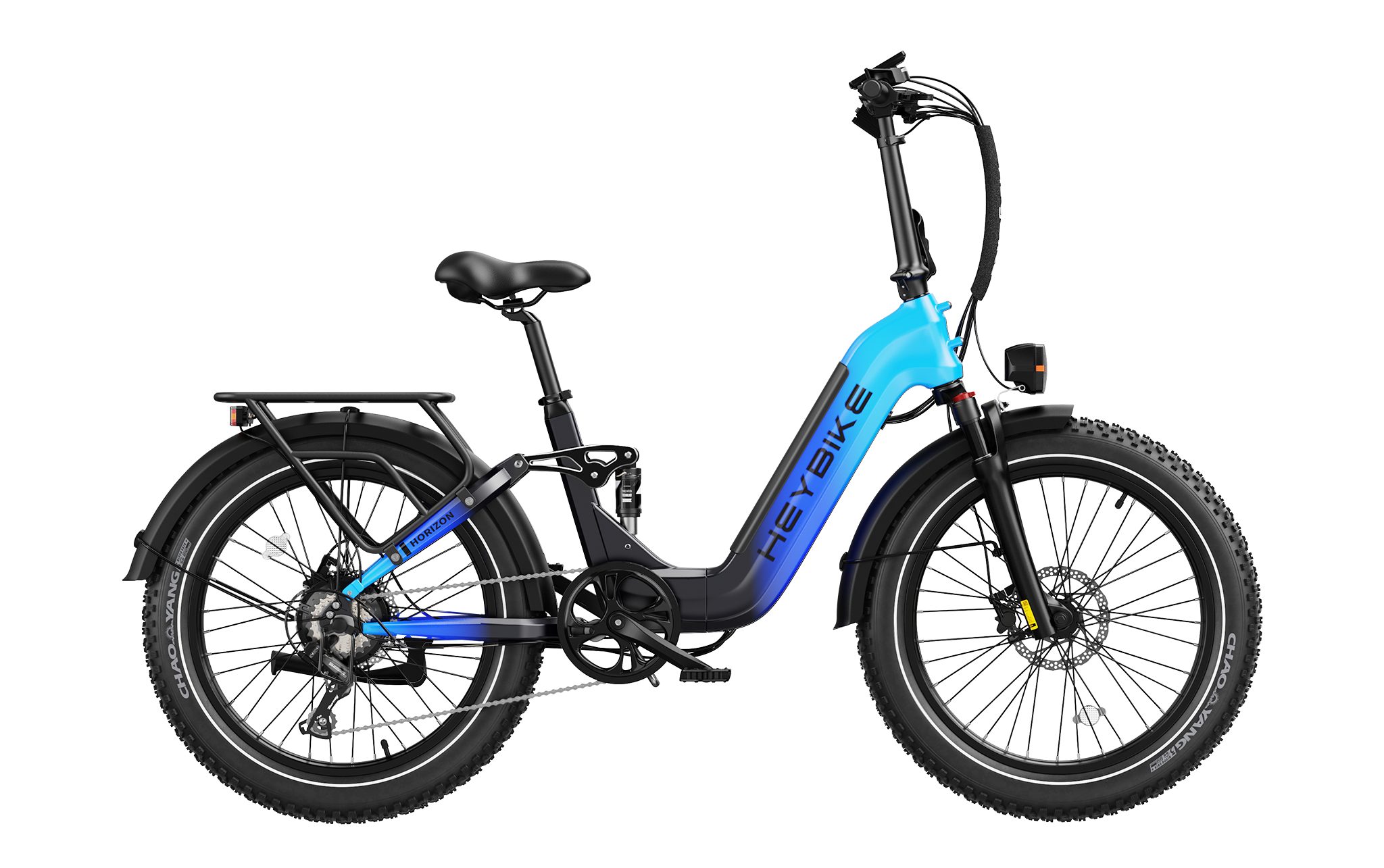

Why Horizon?

Inspired by the spectacular scenery of the foreshore sunset, our designer portrays a stunning bike frame with a gradient color, symbolizing every rider's limitless potential and innovative spirit. With a full suspension system, hydraulic disc brakes, and 24×4" fat tires, Horizon enables you to ride comfortably and efficiently. Enjoy riding with it and push your limits!

Rider Review

Load video:

The End Is Near! Collar Tied Rafters, Eave Overhangs, Windows, & Gable Sheathing DONE!

Simple Life Reclaimed

Load video:

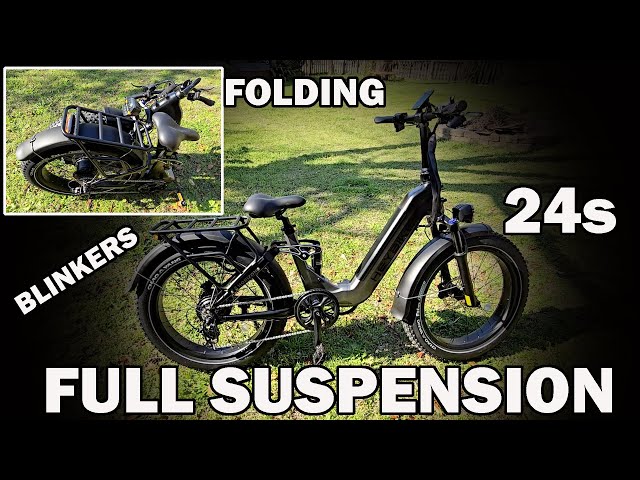

Heybike Horizon: 24x4 Fat Tires with Dual Suspension

CitizenCycle

Load video:

This Limited Edition has EVERYTHING you can ask for in an eBike

Kirk kreifels

Limited-edition Design

More than 150 designs were drafted for Horizon's appearance. The sunset color design stood out in market research. There are only 500 bikes for sale. Hurry up and get a limited-edition ebike!

Only 500 Bikes For Sale
Limited Gift Boxes For Free

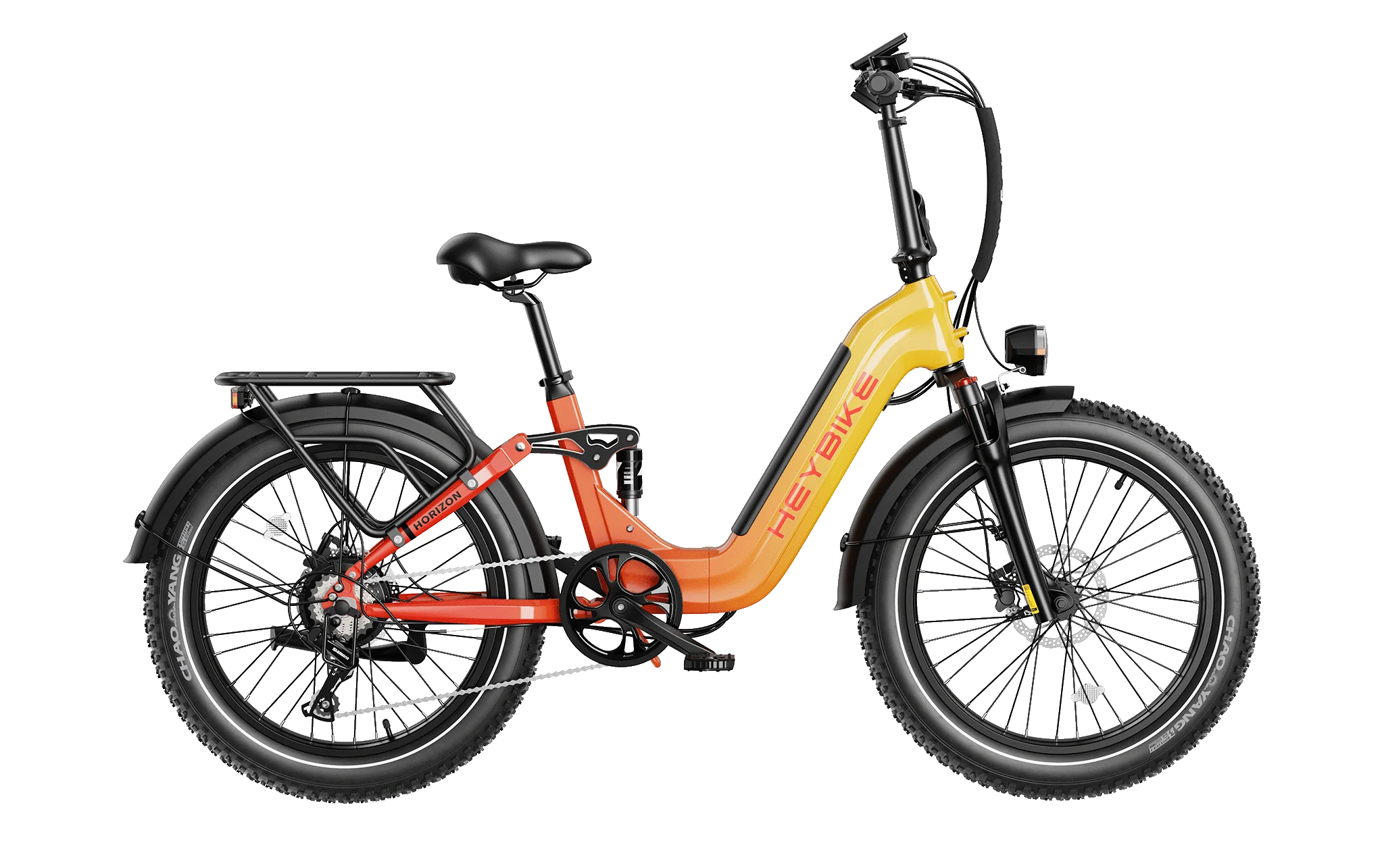

Full Suspension

Along with the front suspension, the horst-link suspension makes up Horizon’s full suspension system, which greatly reduces bump on uneven surfaces

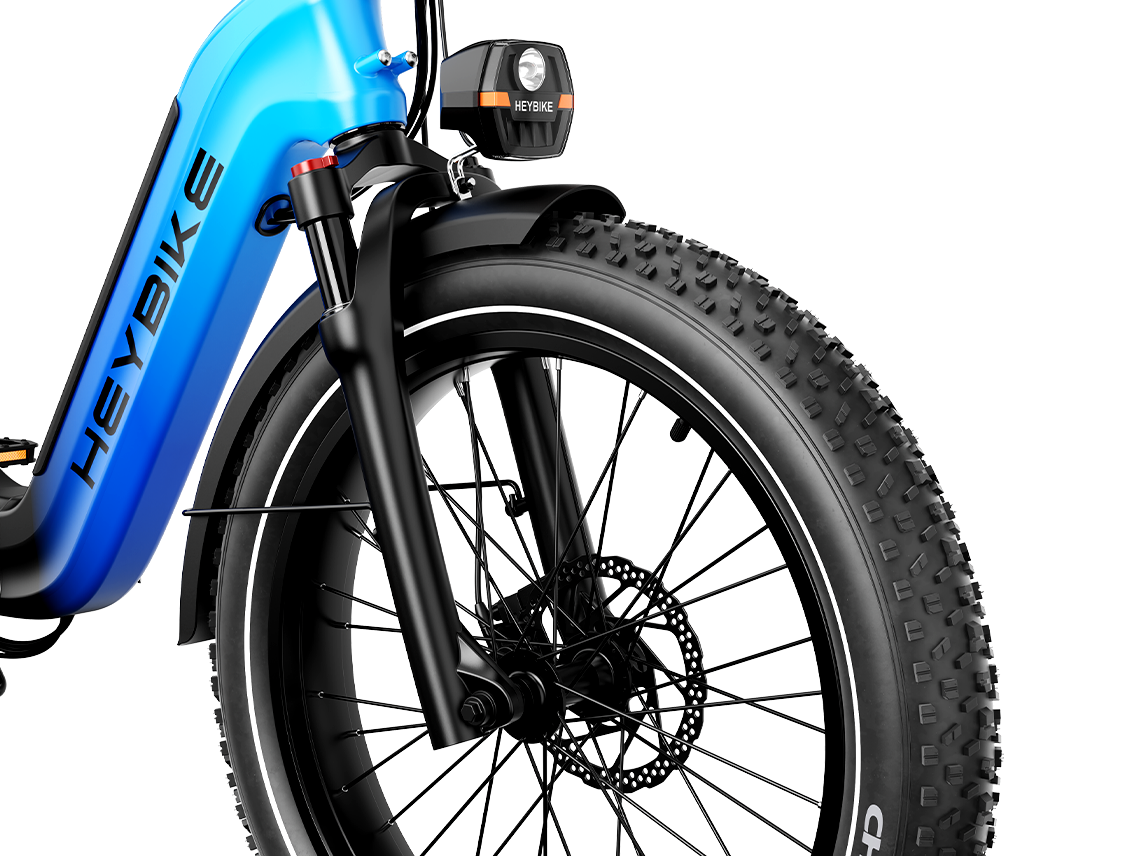

Hydraulic Front Suspension For Superior Control

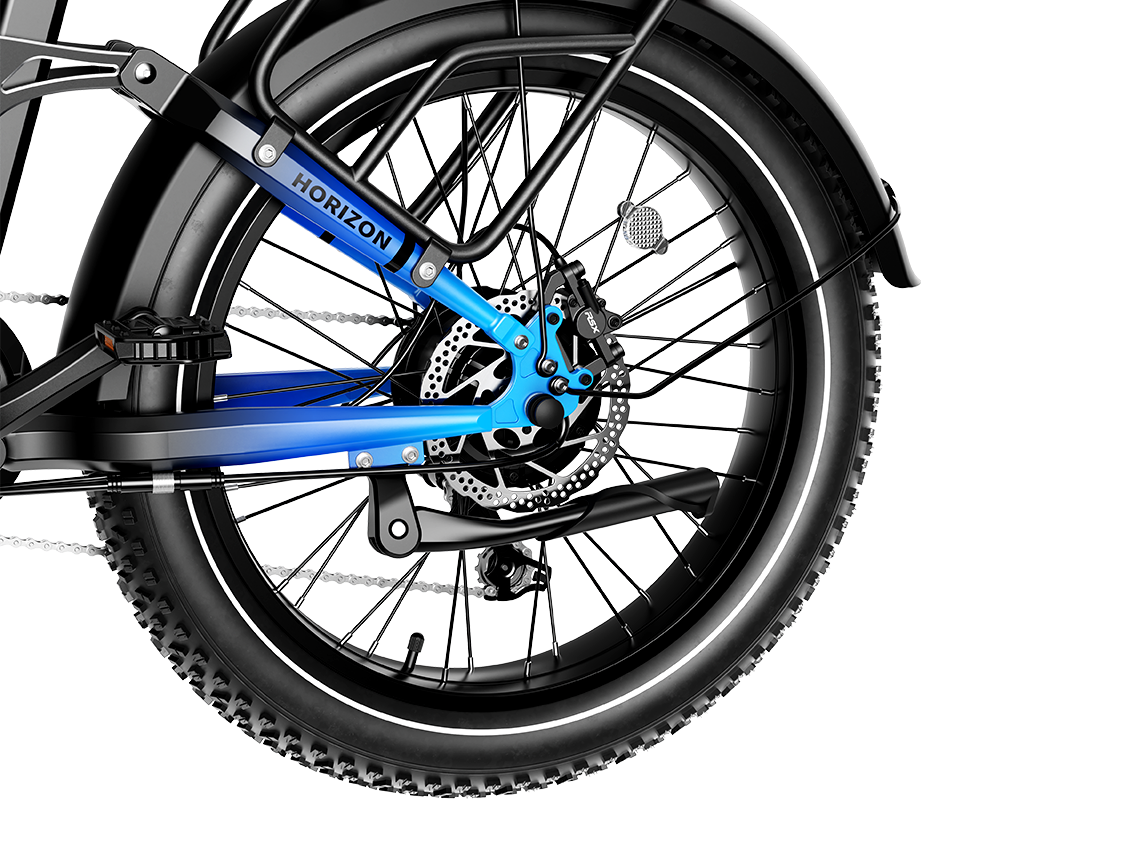

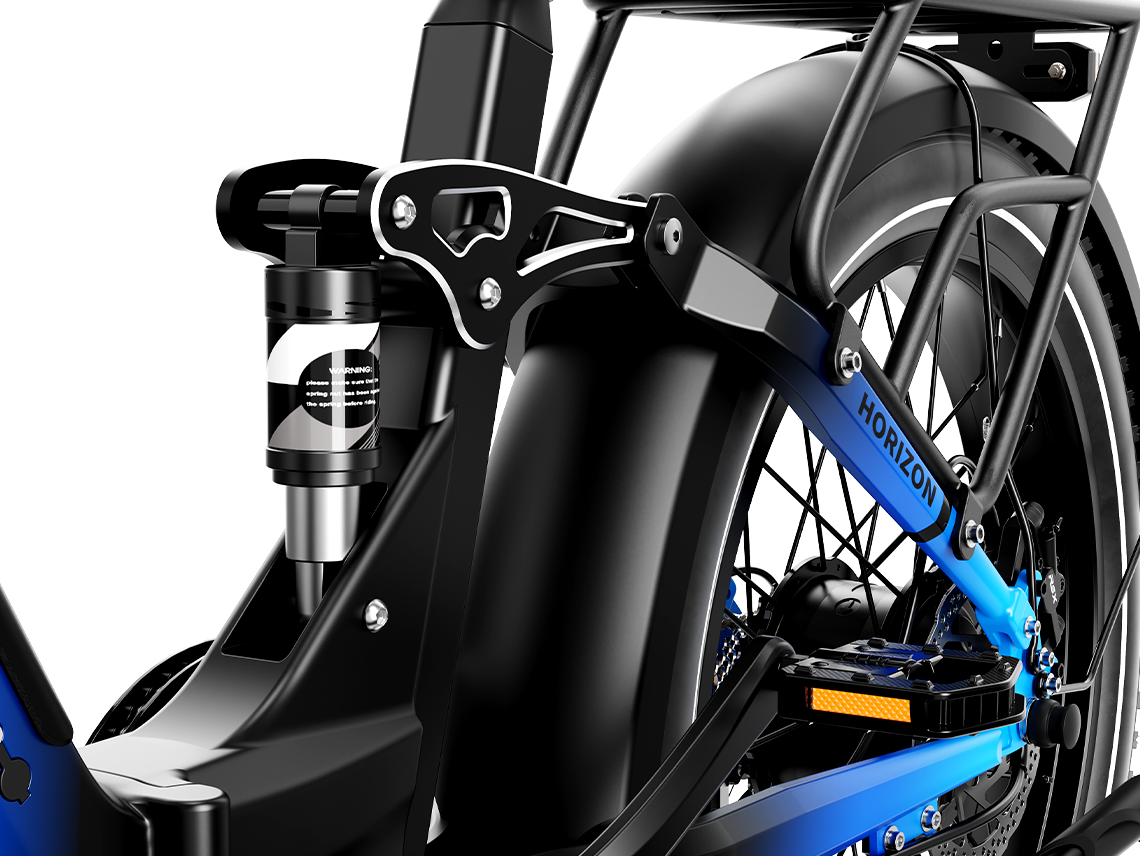

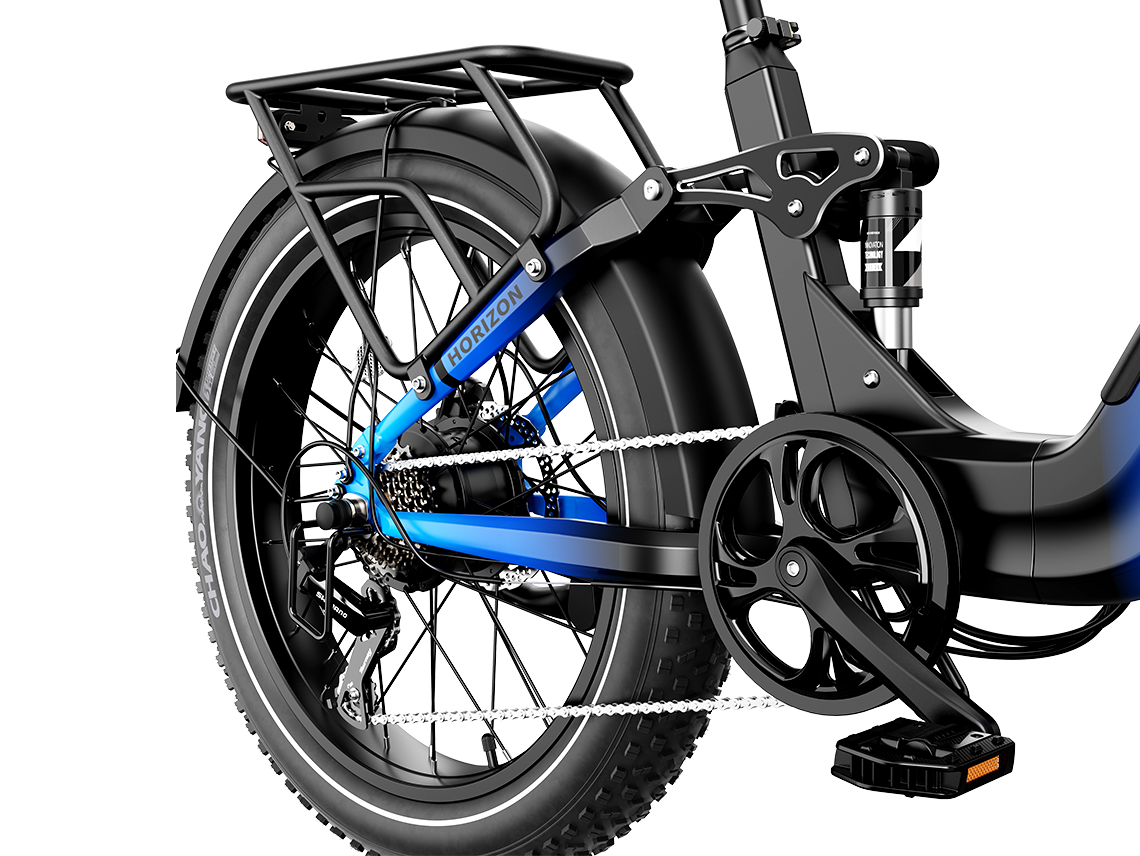

Horst-link Suspension For Reduced Shock

Discover Horizon

Compact Folding Design

Simply fold it, store it, and unfold the bike to hit the streets or go off-road when you are ready to ride.

Hydraulic Disc Brakes

The advanced hydraulic disc brakes provide reliable braking power for enhanced safety and control during your rides.

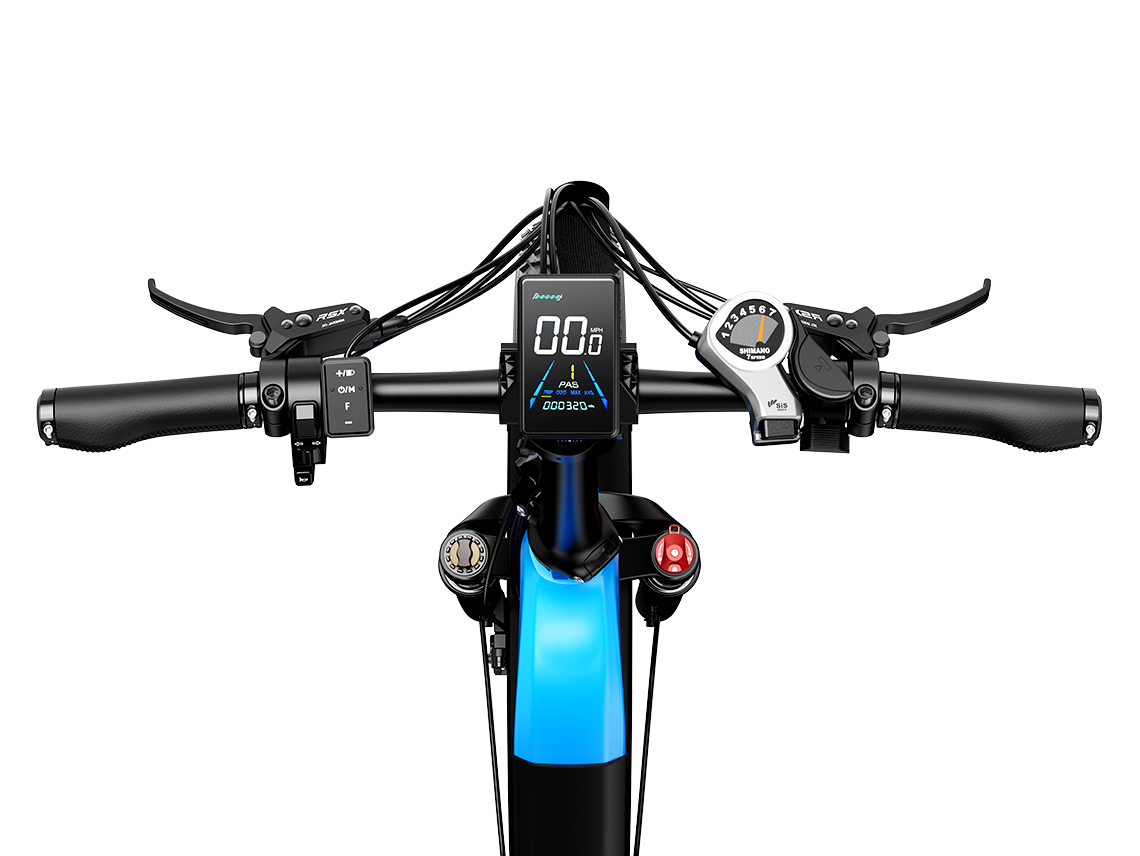

Shimano 7-speed Gear Shift System

Horizon features a Shimano 7-speed gear shift system, offering versatile and precise gear shifting for a smooth and efficient ride. Find the speed that matches your journey!

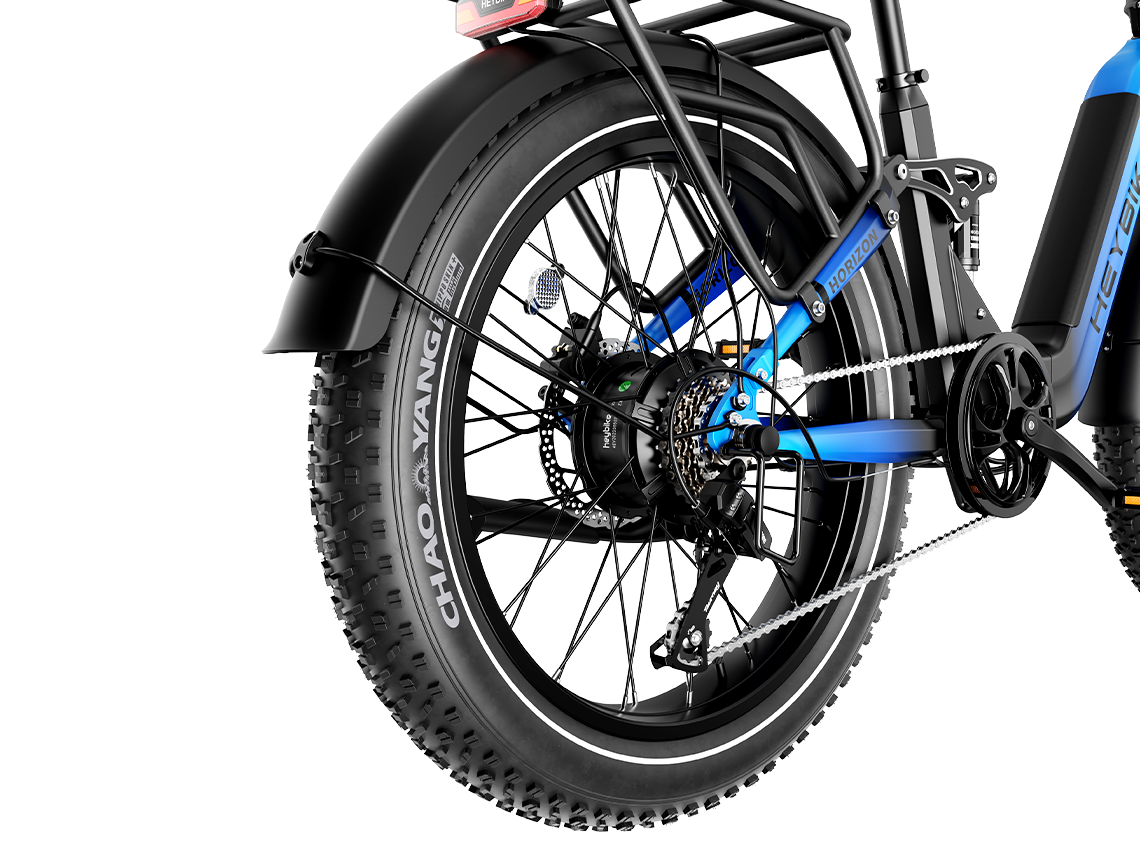

24"x4" Fat Tires

Two fat tires provide unparalleled traction. Say goodbye to skidding and slipping; Embrace a smooth and comfortable journey.

App Connection

Connect your bike with the Heybike smart app for convenient control of the bike. The App also provides more personalized bike’s settings.

Spec&Size

Frameset
Frame

Aluminum Alloy, removable lithium-ion battery, rear rack included, fender mounts, front & rear mount mechanical disc, kickstand mount

Full Suspension

Horst-link suspension and hydraulic front suspension

Wheels
Hub rear

Brushless geared hub motor, 80Nm, 1400W

Spokes

Aluminum alloy

Tire

Puncture protection, 24"x4.0"-max tire size without fenders

E-system & Drivetrain
Battery

692Wh, removable lithium-ion battery

Charger

4A, 54.6V output, 100V-220V AC input

Display Type

LCD Display

Rear Derailleur

Shimano 7 speed

Accessories
Light

LED headlight with auto-on feature, and integrated taillight with brake light.

Kickstand

Alloy

Weight & Dimensions
Weight

36 kg / 79.4 lbs

Weight limit

Maximum total weight limit (combined weight of rider and cargo) of 330 pounds (149.7kg).

Folded Dimensions

49.2*23.6*31.5 inch

Unfolded Dimensions

75.6*24.4*46.5 inch

What's In The Box

  • Horizon

  • Charger

  • User Manual

  • Toolkit Box

  • Keys

  • Gift Box

FAQs - Horizon

What is the warranty?

The original warranty for Horizon is 1 year. If you buy it between April 1st and June 30th, 2024, we will give the bike another 1-year warranty (2 years warranty in total). Besides, you can purchase the extended warranty service at the same time you place an order or within 30 days of purchase.

How to buy an Extend warranty for my e-bike?

For orders on Heybike official website, you can extend the bike warranty at the same time you place an order or within 30 days of purchase. Please note that different plans of extended warranty need corresponding payment. You can also contact our customer service team for more details.

What is a full-suspension electric bike?

A full suspension ebike has a front suspension in the fork as well as a rear suspension (also known as a horst-link suspension), whereas hardtail ebikes only have a front suspension fork. Full suspension ebikes are better suited to rough, technical, and often steep downhill terrains by improving comfort, traction, and control, thus creating a more enjoyable riding experience.

Does full suspension make a difference?

You’ll benefit from a full suspension ebike if you:

  1. Intend to ride technical terrain: extra suspension improves how easily the bike can move over rougher trails and singletrack. They’re more forgiving of rider errors when it comes to choosing lines compared to a hardtail bike.
  2. Want a more comfortable bike: as mentioned above, a full suspension bike gives much more comfort thanks to the rear suspension. If the riding you’ll do isn’t so technical and you want more comfort, you’ll be right by choosing a full suspension ebike.
  3. Need to be faster in speed: full suspension bikes absorb the lumps and bumps on the roads better than a hardtail bike, allowing you to ride faster through technical sections of the trail.
Does my height/weight suit Horizon?

The recommended rider height for Horizon is 5'5" ~ 6'3"; The total payload capacity of Horizon is 330 lbs (not including the bike weight).

Can I transport Horizon in a car trunk?

Horizon can be folded and stored in a car trunk. Its folded dimensions are 49.2*23.6*31.5 inch, and its unfolded dimensions are 75.6*24.4*46.5 inch.

How to adjust each PAS level speed on the ebike?
  1. You can adjust the PAS speed with Horizon display.
  2. Horizon supports App control. You can adjust the PAS level speed in the App. Find the setting button in the App and choose "personalize". Then you will find the speed settings.
How to reset the display screen?
  1. You can directly reset the screen on Horizon display.
  2. Horizon supports App control. You can reset the display screen in the App. Find the setting button in the App and choose "personalize". Then in the other settings, you will find backlight setting, personalization setting, trip distance resetting, and factory restoration setting.
Is my Horizon pre-assembled?

The Horizon is partially assembled. You have to install some parts by yourself, such as the front wheel, rear rack, saddle, pedals, and front light. You can download the Horizon user manual or look at the assembly video for help.

What is included in the Horizon package?

Horizon comes equipped with a kickstand, a rear rack, and a fender. And there are screws to install the rack and fender. They are all included in the bike package and sent together.
