Full suspension ebike for limitless adventures


















-
1400WPeak Motor
-
28 MPHTop Speed
-
55 MilesMax Range
-
24x4"Fat Tires
-
692WhBattery Capacity
-
330 lbsMax Load
Horizon
$1,499.00
Regular price
$1,999.00
Sale Ends In:
--
Hours--
Mins--
Secs
Popular Upgrades
Popular Upgrades
More Accessories
More Accessories
-
1400WPeak Motor
-
28 MPHTop Speed
-
55 MilesMax Range
-
24x4"Fat Tires
-
692WhBattery Capacity
-
330 lbsMax Load
-
Ships in 1-2 days.
-
14-day Free Trial
-
2-Year Warranty
-
Full Suspension
-
1400W
Peak Motor
-
24"*4"
Fat Tires
-
Low-Step
Frame
-
28 MPH
Max Speed
-
Upgraded Foldable
Compact Design
-

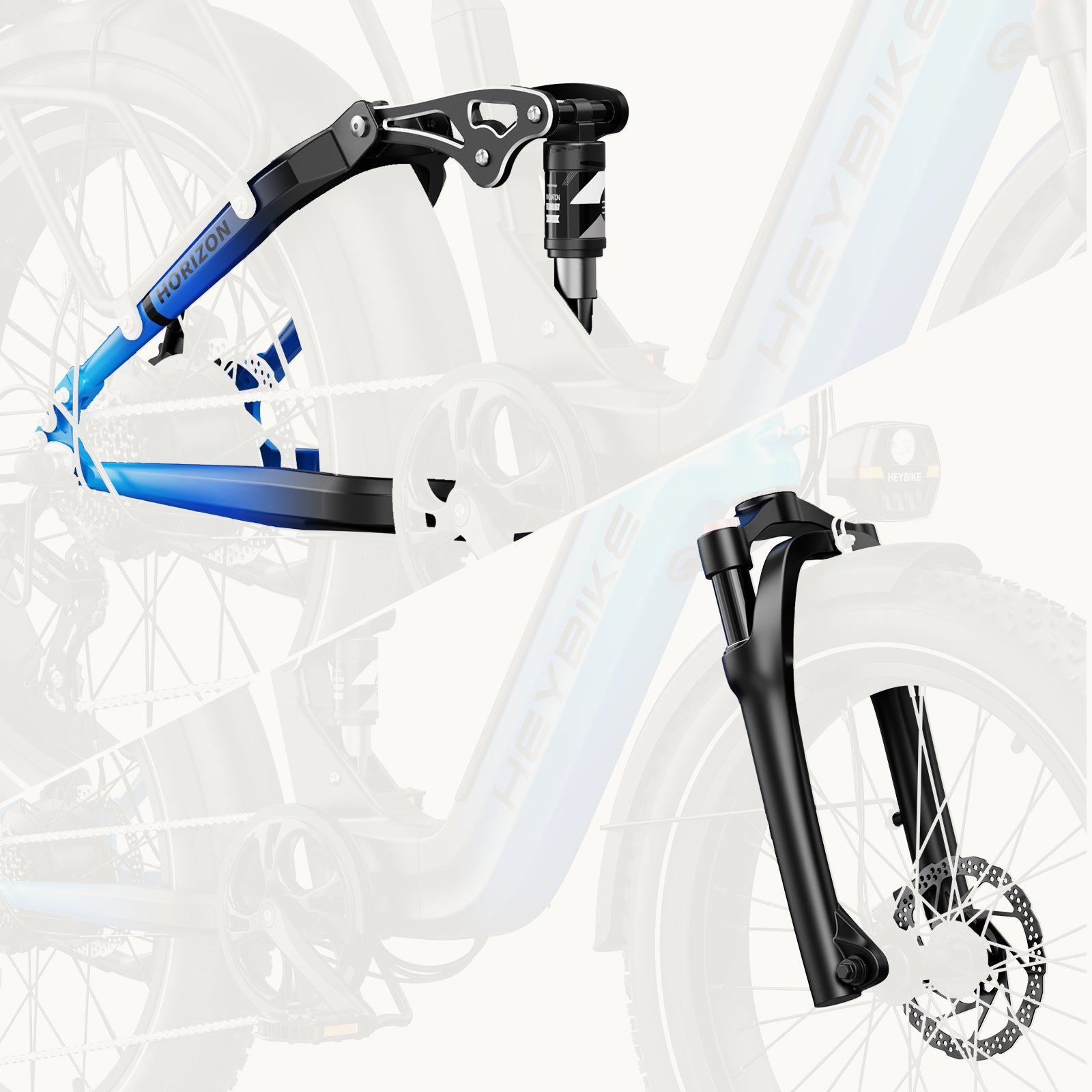

Full Suspension
Hydraulic Front Suspension For Superior Control

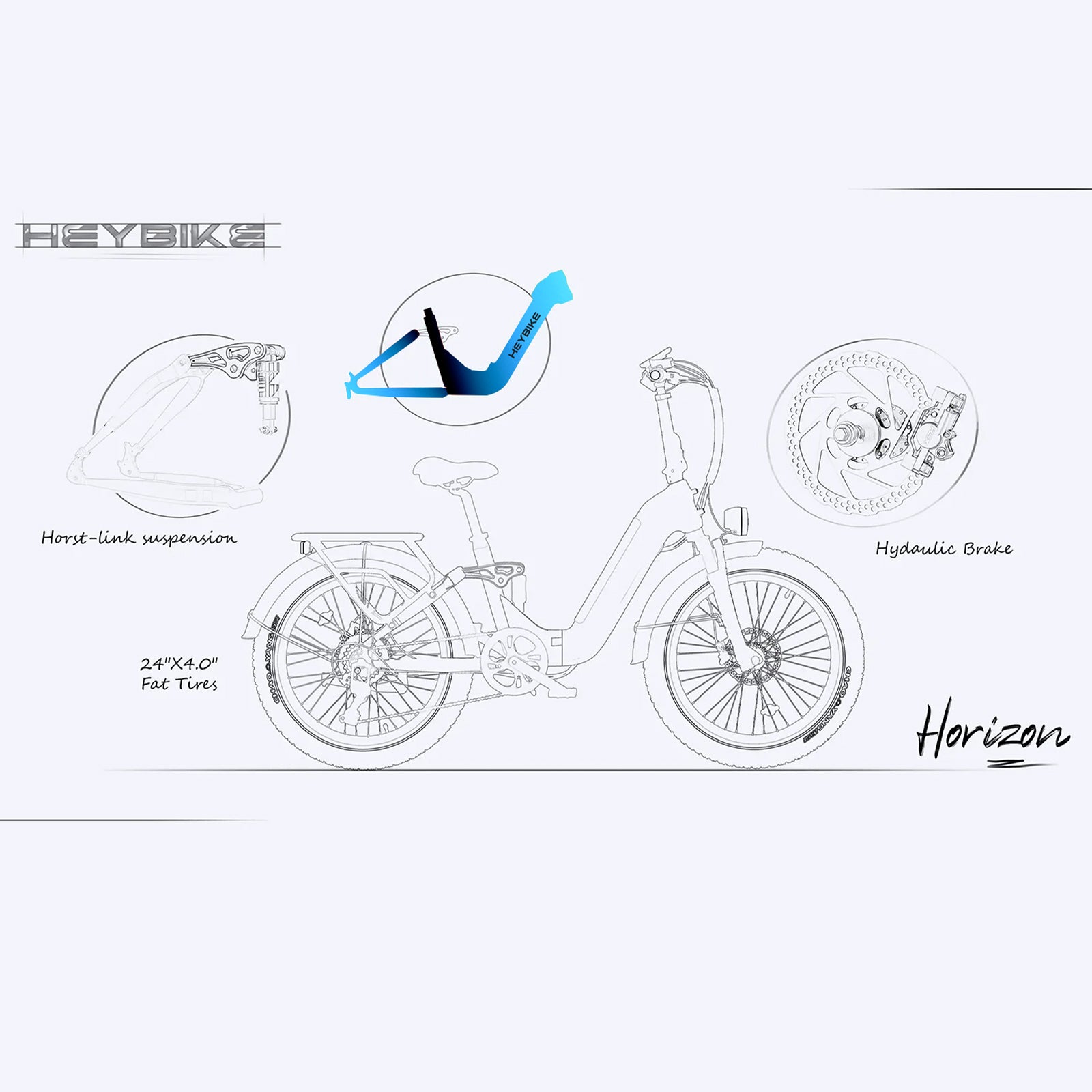

Horst-link Suspension For Reduced ShockAlong with the front suspension, the horst-link suspension makes up Horizon’s full suspension system, which greatly reduces bump on uneven surfaces
-
Bold Gradient Design
Sleek Coating, High-End Appeal
Where Color Meets CraftsmanshipCrafted with a seamless gradient fade, the Horizon’s frame delivers a premium finish that mirrors the style of high-end performance vehicles. Wherever you ride, you ride in style.
-

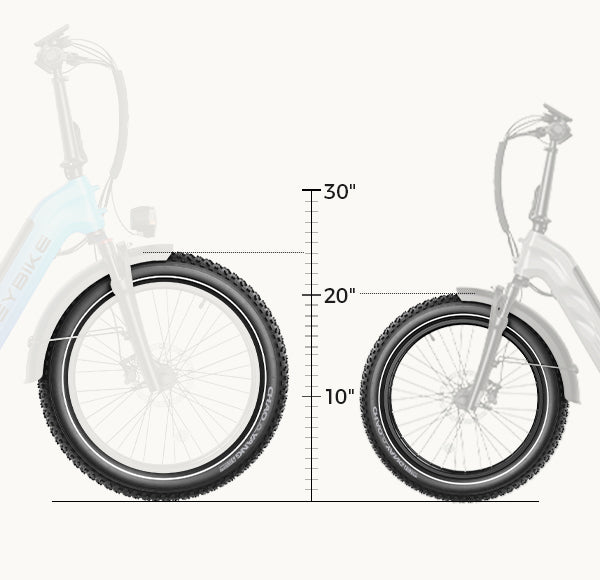

24"x4" Fat Tires
Two fat tires provide unparalleled traction. Say goodbye to skidding and slipping; Embrace a smooth and comfortable journey.
-

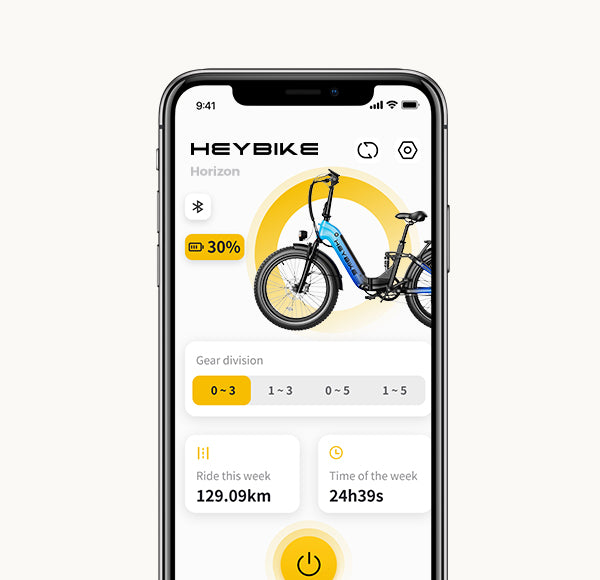

App Connection
Connect your bike with the Heybike smart app for convenient control of the bike. The App also provides more personalized bike’s settings.
Specifications & Parameters
Frameset
Frame
Aluminum Alloy, removable lithium-ion battery, rear rack included, fender mounts, front & rear mount mechanical disc, kickstand mount
Full Suspension
Horst-link suspension and hydraulic front suspension
Wheels
Hub rear
Brushless geared hub motor, 80Nm, 1400W
Spokes
Aluminum alloy
Tire
Puncture protection, 24"x4.0"-max tire size without fenders
E-system & Drivetrain
Battery
692Wh, removable lithium-ion battery
Charger
4A, 54.6V output, 100V-220V AC input
Display Type
LCD Display
Rear Derailleur
Shimano 7 speed
Accessories
Light
LED headlight with auto-on feature, and integrated taillight with brake light.
Kickstand
Alloy
Weight & Dimensions
Weight
36 kg / 79.4 lbs
Weight limit
Maximum total weight limit (combined weight of rider and cargo) of 330 pounds (149.7kg).
Folded Dimensions
49.2*23.6*31.5 inch
Unfolded Dimensions
75.6*24.4*46.5 inch
Inside the Box
Horizon
Charger
User Manual
User Manual
Key
FAQs
What is the warranty?
The original warranty for Horizon is 1 year. If you buy it between April 1st and June 30th, 2024, we will give the bike another 1-year warranty (2 years warranty in total). Besides, you can purchase the extended warranty service at the same time you place an order or within 30 days of purchase.
How to buy an Extend warranty for my e-bike?
For orders on Heybike official website, you can extend the bike warranty at the same time you place an order or within 30 days of purchase. Please note that different plans of extended warranty need corresponding payment. You can also contact our customer service team for more details.
What is a full-suspension electric bike?
A full suspension ebike has a front suspension in the fork as well as a rear suspension (also known as a horst-link suspension), whereas hardtail ebikes only have a front suspension fork. Full suspension ebikes are better suited to rough, technical, and often steep downhill terrains by improving comfort, traction, and control, thus creating a more enjoyable riding experience.
Does full suspension make a difference?
You’ll benefit from a full suspension ebike if you:
- Intend to ride technical terrain: extra suspension improves how easily the bike can move over rougher trails and singletrack. They’re more forgiving of rider errors when it comes to choosing lines compared to a hardtail bike.
- Want a more comfortable bike: as mentioned above, a full suspension bike gives much more comfort thanks to the rear suspension. If the riding you’ll do isn’t so technical and you want more comfort, you’ll be right by choosing a full suspension ebike.
- Need to be faster in speed: full suspension bikes absorb the lumps and bumps on the roads better than a hardtail bike, allowing you to ride faster through technical sections of the trail.
Does my height/weight suit Horizon?
The recommended rider height for Horizon is 5'5" ~ 6'3"; The total payload capacity of Horizon is 330 lbs (not including the bike weight).
Can I transport Horizon in a car trunk?
Horizon can be folded and stored in a car trunk. Its folded dimensions are 49.2*23.6*31.5 inch, and its unfolded dimensions are 75.6*24.4*46.5 inch.
How to adjust each PAS level speed on the ebike?
- You can adjust the PAS speed with Horizon display.
- Horizon supports App control. You can adjust the PAS level speed in the App. Find the setting button in the App and choose "personalize". Then you will find the speed settings.
Is my Horizon pre-assembled?
The Horizon is partially assembled. You have to install some parts by yourself, such as the front wheel, rear rack, saddle, pedals, and front light. You can download the Horizon user manual or look at the assembly video for help.
What is included in the Horizon package?
Horizon comes equipped with a kickstand, a rear rack, and a fender. And there are screws to install the rack and fender. They are all included in the bike package and sent together.
