Why Ranger S?

The Ranger S e-bike is a folding electric bike equipped with a powerful 750W motor. It offers a remarkable range of up to 55 miles on a single charge, allowing riders to explore their surroundings with ease and convenience.

Rider Review

Load video:

The Fast Charging 55 Mile Folding EBike Under $1,500

TailHappyTV

Load video:

Heybike Ranger S review: A fat tire e-bike for anyone

Electrek.co

Load video:

HeyBike Ranger S Review | A Folding E-Bike That Can Go 28 MPH!?

Electric Bike Report

Add a Pop of Color to Your Ride

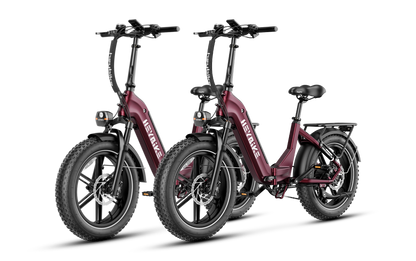

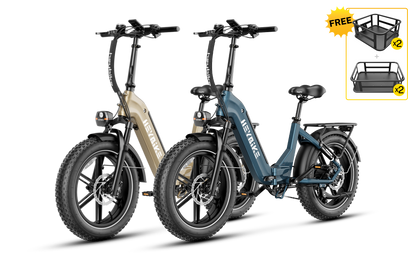

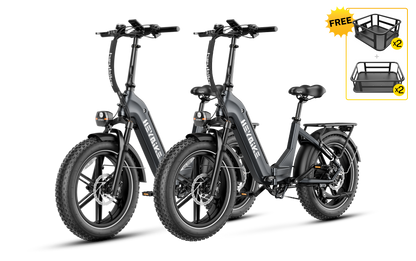

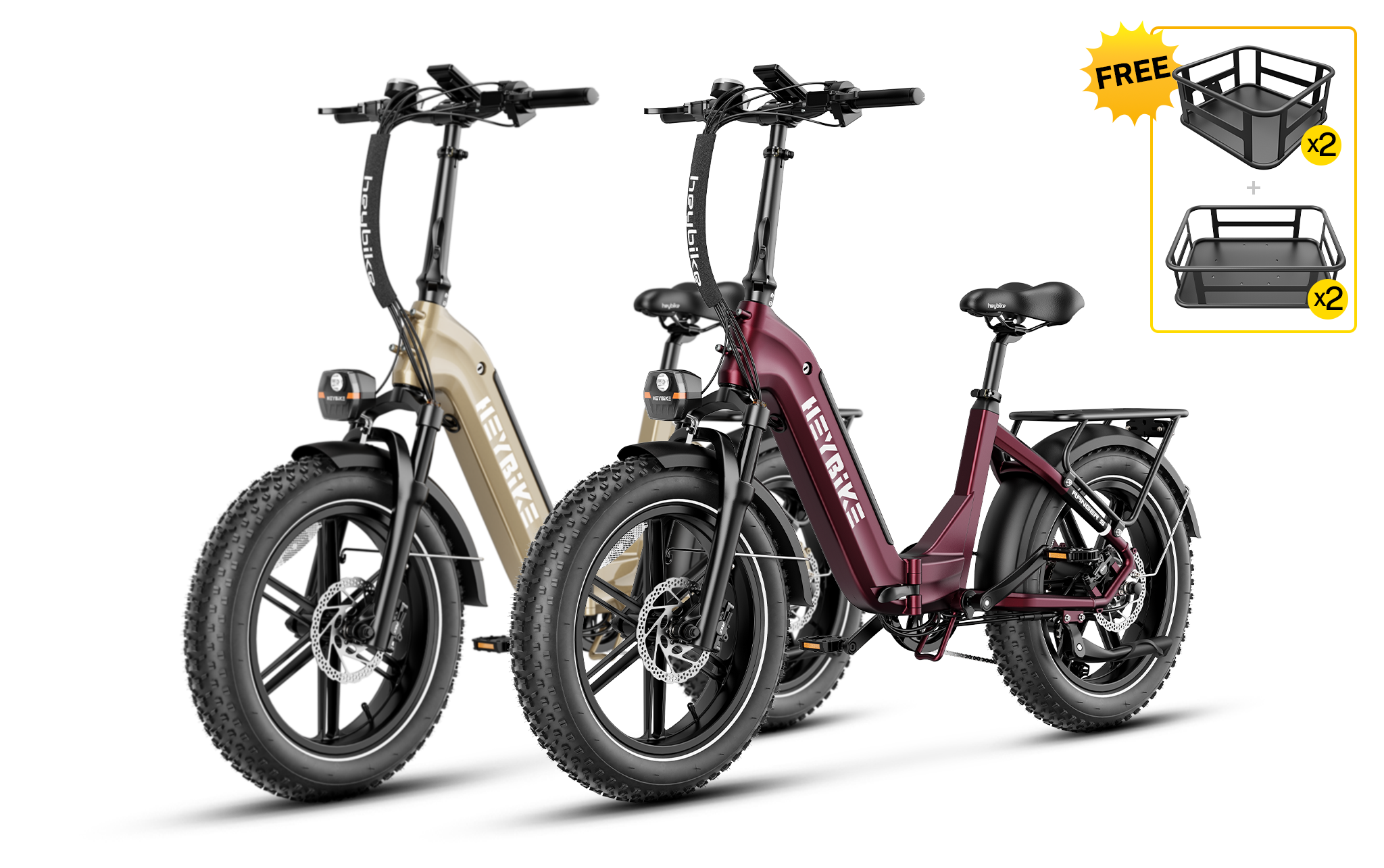

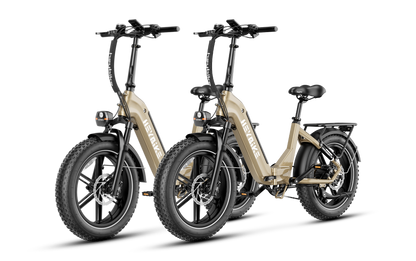

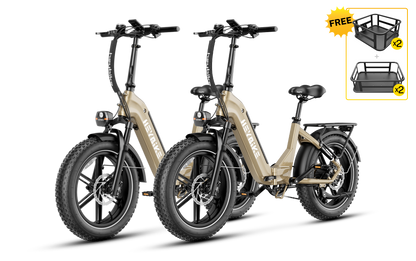

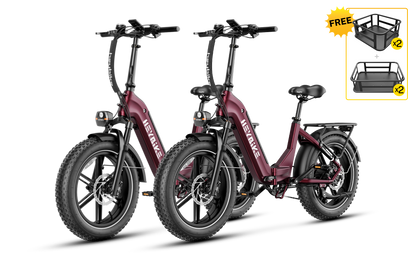

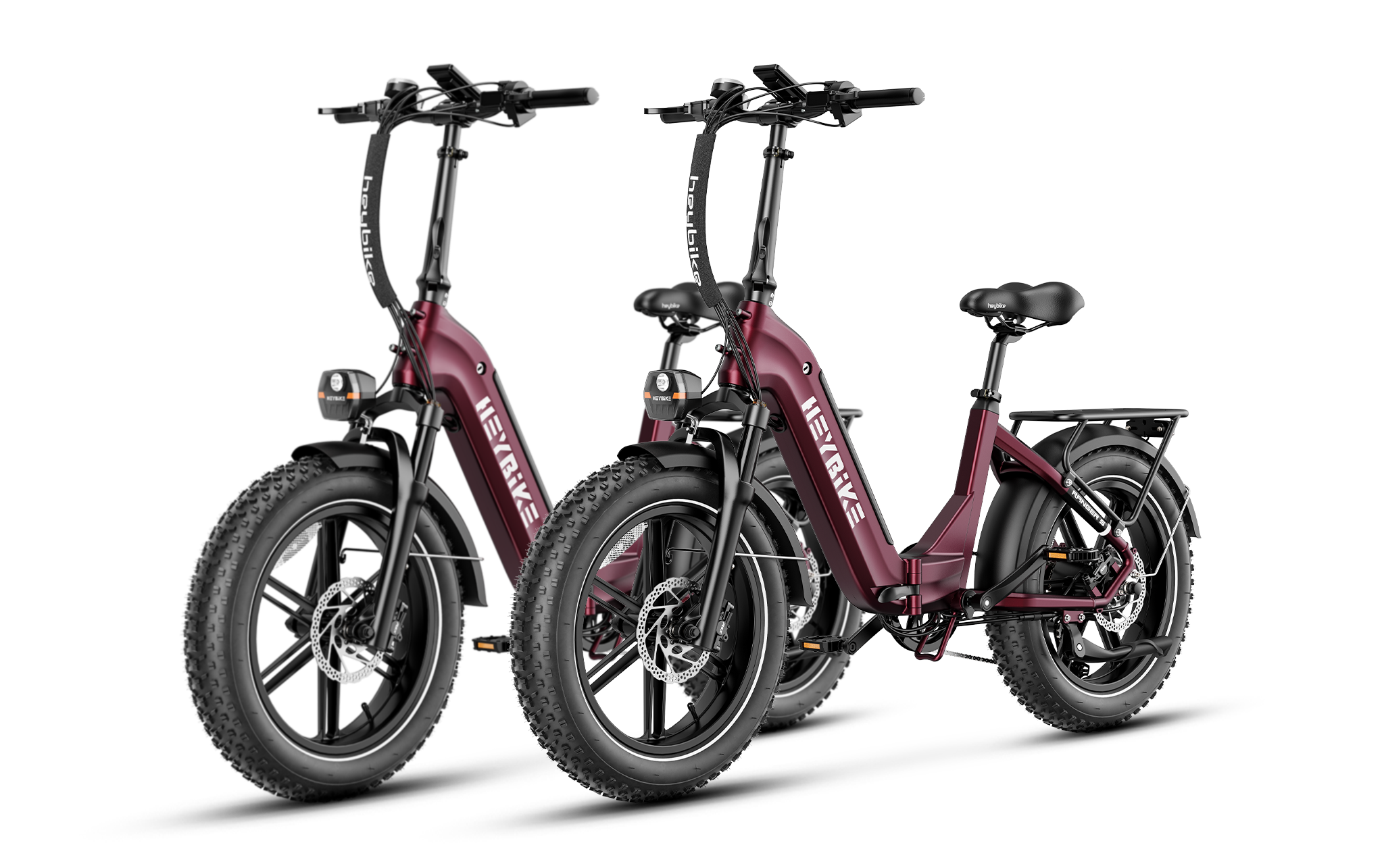

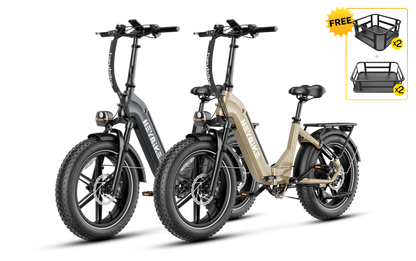

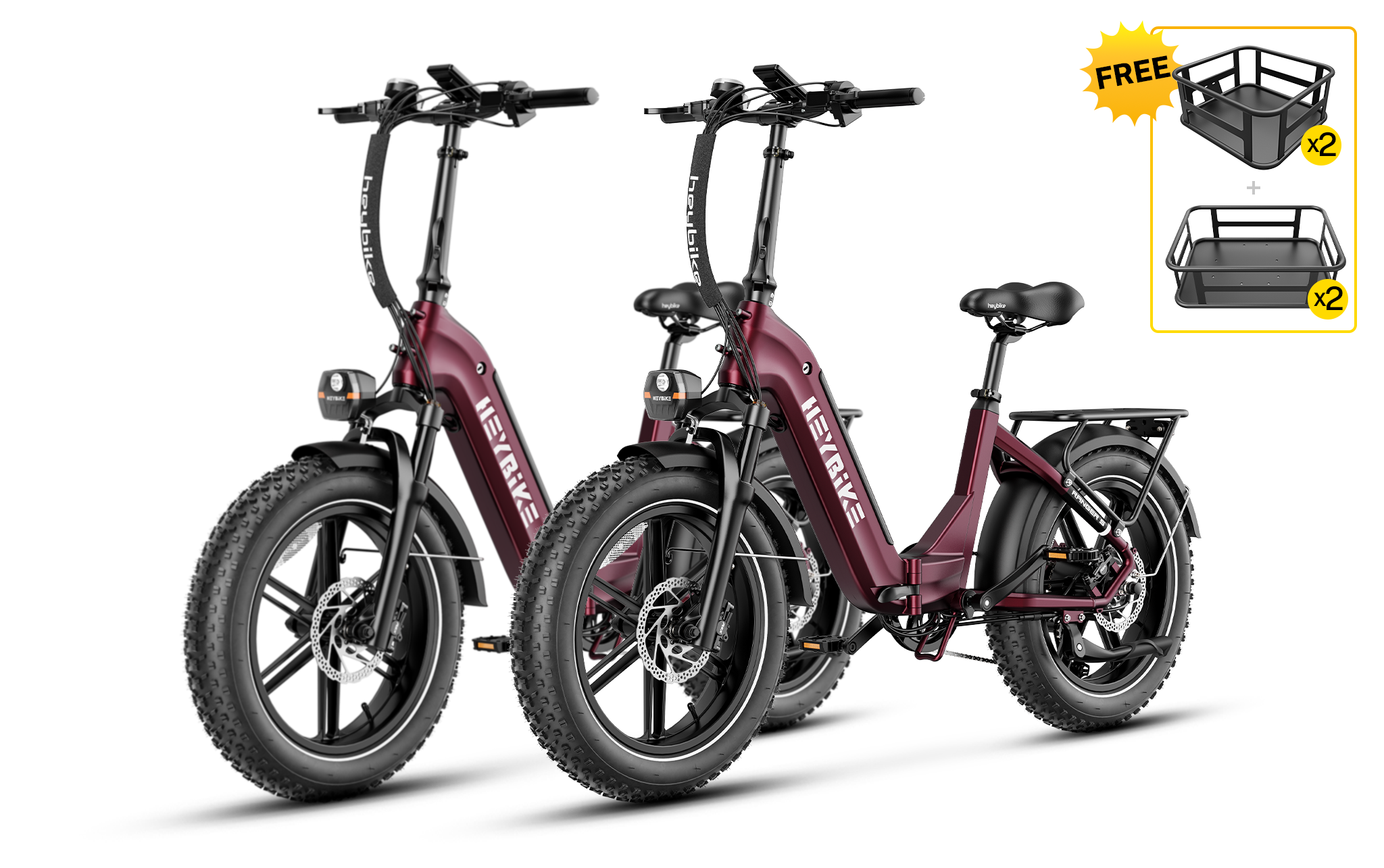

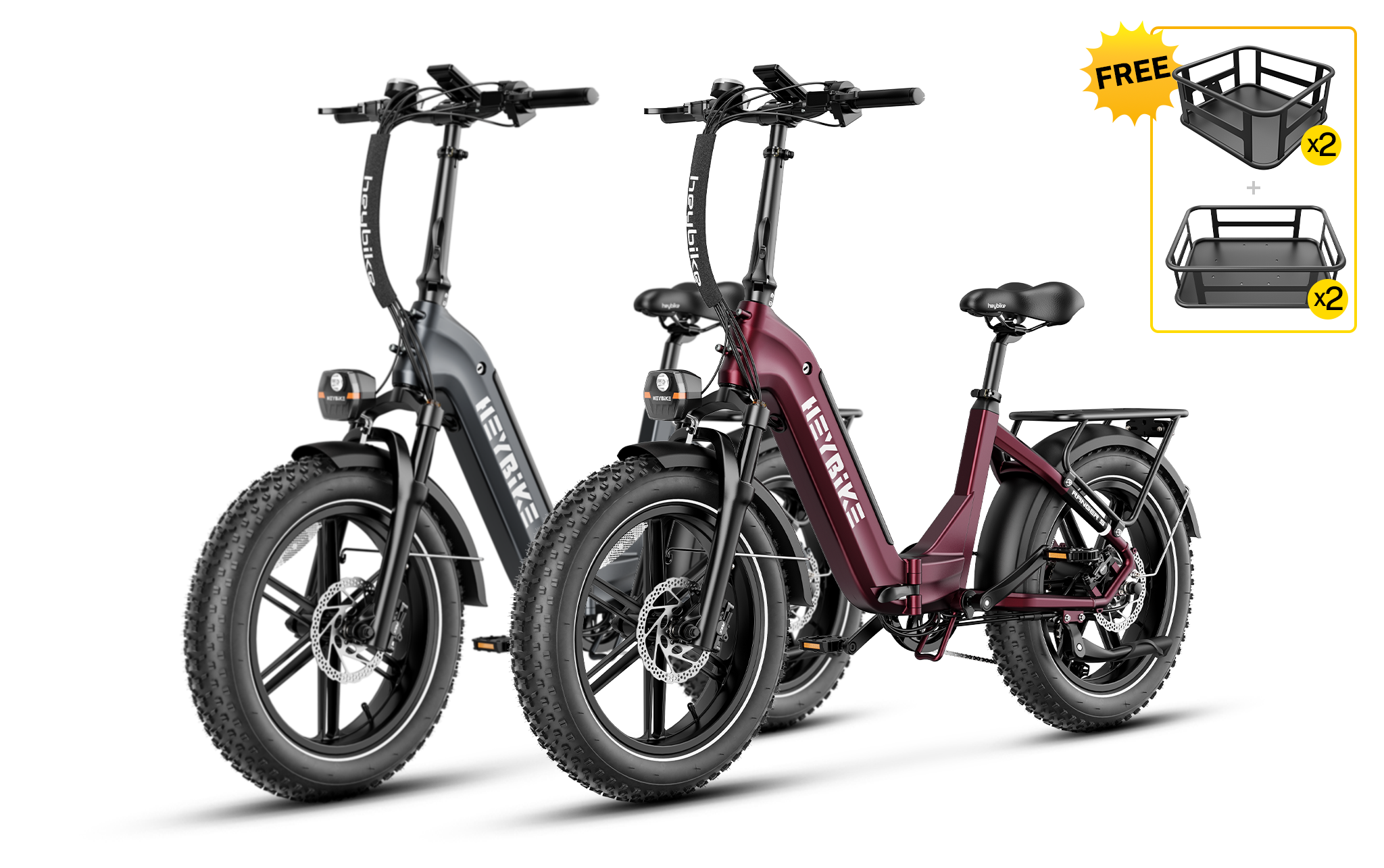

There are 4 color options of Ranger S: merlot-red, stone-blue, shark-grey, metallic-sand. Choose the one you like and ride in style.

Exciting Riding in Different Colors
Stylish Cycling in Happy Moods

Safety Certified Battery

The Ranger S ebike features a Safety Certified Battery (UL2849 Standard) with a capacity of 692Wh. It can provide reliable power for a versatile and eco-friendly ride.

692Wh Battery Capacity
600 Cycle, 80% Battery Life

Discover Ranger S

Hydraulic Disc Brakes

The advanced hydraulic disc brakes provide reliable braking power for enhanced safety and control during your rides.

400 lbs Payload Capacity

Use this section to explain a set of product features, to link to a series of pages, or to answer common questions about your products.

Folding Design

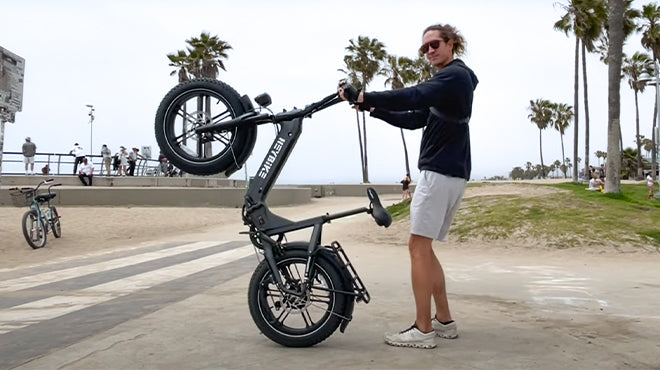

No longer to leave your bike locked at the starting point. Easily fold the Ranger S and carry it for your RV trip. Enjoy the portability of Ranger S.

Hydraulic Front Suspension

The durable hydraulic front suspension fork helps reduce the impacts from the road on the frame to a great extent, which maximizes comfort as well.

Shimano 7-speed Gear Shift System

Ranger S features a Shimano 7-speed gear shift system for smooth and precise gear changes, enhancing your riding experience.

4A Fast Charger

The 4A fast charger takes 3-4 hours to charge the bike, saving you much time.

Integrated Taillight with Brake Lights

Experience ultimate safety and convenience with its integrated taillight with brake lights. Ride with peace of mind, even in the dark.

App Connection

Connect your bike with the Heybike smart app for convenient control of the bike.

Spec&Size

Frameset
Frame

Aluminum Alloy;
removable lithium-ion battery;
rear rack and fenders included;
front & rear mount hydraulic disc;
kickstand mount

Fork

Hydraulic front suspension fork

Wheels
Hub rear

Brushless geared hub motor, 80Nm, 750W/1400W Peak Motor

Tire Construction

Unibody, puncture protection, 20"x4.0"-max tire size without fenders

E-system & Drivetrain
Battery

UL 2271 Recognized 48V 14.4Ah

Fast Charger

48V 4A

Display Type

Smart LCD Display

Rear Derailleur

Shimano 7 speed

Accessories
Rear Rack

Max Load: 120 lbs

Light

LED, headlight and taillight

Kickstand

Alloy

Weight & Dimensions
Weight

32.66 kg / 72 lbs

Weight limit

Maximum total weight limit (combined weight of rider and cargo) of 400 pounds (181kg).

Folded Dimensions

40*20*31 inch

Unfolded Dimensions

70*24.4*50 inch

What's In The Box

  • Ranger S

  • Charger

  • User Manual

  • Toolkit Box

  • Keys

FAQs - Ranger S

Compared to 750W, what is the advantage of Ranger S with a 1000W motor?

The advantage of Ranger S with a 1000W motor lies in its increased power, enhanced control, and improved riding experience. It has quicker speed and better overall performance, making it easy to navigate through traffic with agile maneuverability and conquer challenging terrain with reliable control. Additionally, the inclusion of a torque sensor in 1000W Ranger S provides advanced technology that enhances responsiveness with virtually zero latency.

What Types of Terrain Can Ranger S Handle?

Ranger S ebikes are designed for off-road use on rugged, unpaved surfaces with their wide and fat tires. These surfaces include dirt trails, gravel roads, grass, sand, and light snow. They can handle rougher terrains better than bikes with narrow road tires, but may still struggle on very technical mountain trails. Ranger S is also suitable for all-season use.

Can I Ride Ranger S in The Rain?

Though Heybike e-bikes are designed to handle wet conditions, please keep in mind that riding in heavy rain may affect battery life and reduce traction, so exercise caution and avoid riding in the rain as much as possible.As for the waterproof level, the whole bike meets IPX4 standards; the motor, battery, and display meet IP64 standards.

Are Ranger S E-Bikes Suitable for All Ages and Fitness Levels?

Heybike e-bikes are generally suitable for a wide range of ages (above 18 years old) and fitness levels, as the electric motor provides adjustable assistance to accommodate different riding abilities. However, the max load for Ranger S is 400 lbs. And please consult with a healthcare professional if you have any health concerns before riding.

What is the warranty?

The original warranty for Ranger S is 1 year. If you buy it between April 1st and June 30th, 2024, we will give the bike another 1-year warranty (2 years warranty in total). Besides, you can purchase the extended warranty service at the same time you place an order or within 30 days of purchase.

What type of sensor is used on the Ranger S?

The 1000W Ranger S is equipped with a torque sensor; The 750W Ranger S is equipped with a cadence sensor.

Can I transport Ranger S in a car trunk?

Ranger S can be folded and stored in a car trunk. Its folded dimensions are 40*20*31 inch, and its unfolded dimensions are 70*24.4*50 inch.

Does my height/weight suit the Ranger S?

The recommended rider height for Ranger S is 4'11" ~ 6'3"; The total payload capacity of Ranger S is 400 lbs (not including the bike weight).

How to adjust each PAS level speed on the ebike?

① You can adjust the PAS speed with Ranger S display. ② Ranger S supports App control. You can adjust the PAS level speed in the App. Find the setting button in the App and choose "personalize". Then you will find the speed settings.

Is my Ranger S pre-assembled?

The Ranger S is partially assembled. You have to install some parts by yourself, such as the front wheel, handlebar, saddle, pedals, and fender. You can download the Ranger S user manual or look at the assembly video for help.
