Uni-Body Design & Magnesium Frame
You never thought you'd find such a one-piece Magnesium frame and integrative wheels combination in a portable ebike! At the same time, folds up all compact despite its big power!!

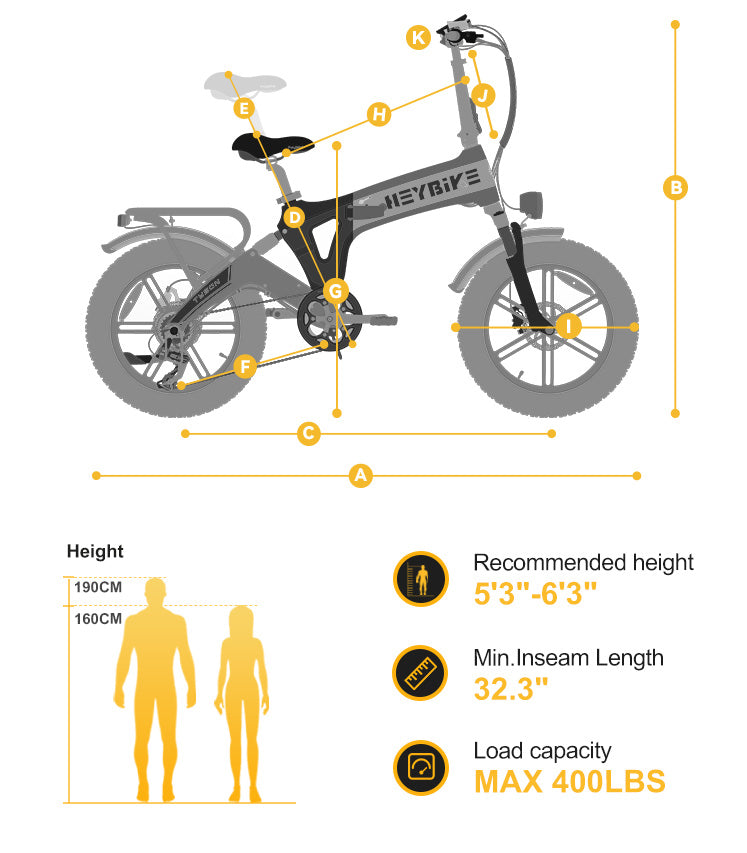

Size & Fit
Size & Fit

-
A
Total Length
68.9" -
B
Handlebar Height
46.8" -
C
Wheelbase
46.4" -
D
Minimum Seat Height
31.5" -
E
Maximum Seat Height
35.8" -
F
Chain Stay Length
19.5" -
G
Stand Height
29.5" -
H
Top Tube Length
24" -
I
Wheel Diameter
21.6" -
J
Head Tube Length
7.5" -
K
Handlebar Length
24.4" -
L
Recommended Rider Height
5'4''-6'6''
Technical Specification
- Battery
48V 15Ah (UL2849 Recognized )
- Fast Charger
48V 4A
- Charging Time
4-5 Hours
- Hub Motor
750W Brushless Gear Motor
- Max Range
55 Miles (Pedal Assist)
- Max Load
400 lb.
- Ebike Class
Class 3
- Display Capability
4G Mobile App Sync
- Front Fork
Hydraulic Suspension Front Fork
- Tire Construction
Unibody
- Brakes
Hydraulic Disc Brakes System
- Folded Dimensions
97×92×62 (cm)
- Product Dimensions
175*62*119 CM
- Product Weight
77 lb.
- Package Dimensions
146*28*75 CM
- Package Weight
94.8 lbs.
